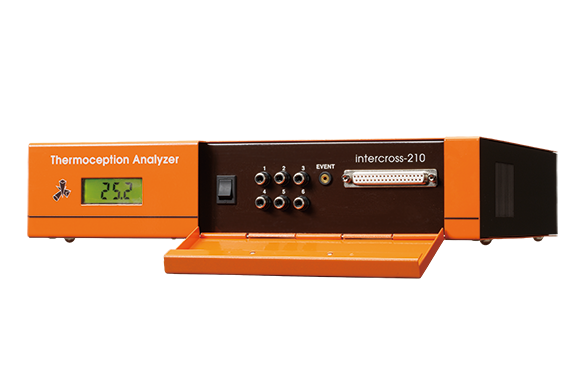

Thermoception Analyzer intercross-210

intercross-200

High accuracy thermoregulation system with the Peltier element.
3 measurement functions for the evaluation of somatic sensation.

Thermal threshold measurement■

It measures the human thermal comfort threshold using the heat flux as an indicator.

It independently evaluates the warm and cold sensation in a short time.

It realizes a low speed thermoregulation of 0.1℃/sec by high accuracy.

Threshold for pain sensation measurement■

It measures threshold of pain by accurate control of repeated fluctuation of temperature.

Pain stimulation measurement■

It stimulates skin in thermostat rate of up to 15 ℃ /sec.

It has high- speed temperature control system to avoid overshoot.

The stimulation measurement is possible inside of MRI (MRI unit is option.)

※ Pain Offset Relief  http://www.intercross.co.jp/e/product/pain-offset-relief/



Synchronization input unit

External synchronizing input 6ch.
1kHz sampling.
Brain waves, an electrocardiogram and blood flow sweat rate are measured with temperature stimulation by synchronization.



■Analyze a threshold for warm and cold sense.

It independently evaluates the absolute value of the human thermal comfort threshold

using the heat flux between device probe and skin as index of measurement.

Measurement Screen 25mm square probe with heat fulx






Measurement protocol


*Rationale for setting heat flux as an index of measurement.

Compared with temperature, heat flux is a more accurate reflection of thermal energy moving between substances.

For example, when we compare a metal and piece of wood on our skin, we feel that the metal is colder,

even if both materials have exactly same temperature. This means that the perception of temperature is related to

the flow of thermal energy between objects and skin, and not the actual temperature itself.

By setting the heat flux as an indicator, this enables the evaluation of absolute values which is not possible with a temperature index.



■ Threshold for pain sensation

It is high- precise control system at the time of awareness with few overshoot.
It sifts or reverses to the next stimulation smoothly.

Measure a threshold according to the difference of temperature.

Measurement Screen 30mmφ with hole for bloodflow probe



■ Stimulation of pain sensation

Probe temperature changes according to a setting temperature program.

<Setting>

10mm square water-cooled probe

・Range of stimulating temperature:    -10℃~50℃(limited by a limiter function)
・Thermoregulation speed:      0.1~15℃/sec
・Thermoregulation sequence segment number:    Maximum 100 segments



<MRI unit>
This external unit is designed to prevent noise infiltering into MRI image.

MRI unit  intercross-210-05    Probe for MRI



【For Human】

Air-cooled 25mm square probe for heat flux  10mm square probe
Probe for intraoral  10mm square probe for face
Probe for MRI   30mmφwith hole for Blood Flow

【For Animal】

1mmφ 3mm square







■intercross-210

Temperature sensor
-60℃~60℃
Heat flux sensor
±10000W/m2
Range for temperature control
-10℃~50℃
Thermoregulation speed for probe
0.1 ℃/sec ~15℃/sec
Sampling frequency
1Hz  10Hz  100Hz  500Hz  512Hz
1000Hz  1024Hz   (possible alternative)
Input channel 8ch
1ch: Probe temperature
2ch: Heat flux of probe3ch~8ch: Option
Input range ±10V
Thermoregulation method Peltier element
Output USB
Power supply AC100V  50/60Hz
Configuration 350mm×300mm×70mm
Weight 5kg

 Attachment

Power cable
intercross-210-01
Event switch intercross-210-02
USB cable intercross-210-04

 Option

4 analog input cable set
intercross-210-03
MRI unit
intercross-210-05
Pump unit for water-cooled probe intercross-210-06

 Software

Measuring software for threshold of warm and cold sense : intercross-210-51
<Measurement condition setting items>
Thermoregulation mode
Temperature mode, Heat flux mode, Double-blind mode
Starting temperature designation
Temperature or Heat flux
Thermoregulation speed
0.1℃/sec  0.3℃/sec  0.5℃/sec  (Select)
Thermoregulation direction
Heating or Cooling
Result list



Starting temperature, Awareness temperature,
Awareness temperature difference,
Awareness time, Starting heat flux,
Awareness heat flux,
Awareness heat flux difference
Integral value of the heat flux
The number of the display channel Maximum 8 channel



Program for stimulation of pain sensation : intercross-210-52
<Thermoregulation setting item>
A basement temperature or basement heat flux
(Designation optionally)
Thermoregulation speed 0.1℃/sec~5℃/sec  (Designation optionally)
The number of thermoregulation repetition
1 ~20times  (Designation optionally)
The initial thermoregulation direction
Heating or Cooling (Select)
Result list
Skin temperature at the time of awareness
Average value of skin temperature at the time of awareness
Standard deviation value of skin temperature at the time of awareness
Maximum value of skin temperature at the time of awareness
Minimum value of skin temperature at the time of awarenes
The number of the display channel Maximum 8 channel

 Configuration of intercross-210 system

Threshold for warm and cold sense   Stimulation of pain Stimulation of pain for MRI Threshold for pain sense
intercross-210
Probe 25mmsquare
water-cooled with heat flux
10mm square
Water-cooled
10mm square
Water-cooled for MRI
30mmφ
With bloodstream hole
software
intercross-210-51  intercross-210-53
intercross-210-53 intercross-210-52
other
 – Pump unit for water-cooled probe Pump unit for water-cooled probe
MRI unit
Pump unit for water-cooled probe



Main literature list

Accuracy and reliability of threshold measurement in the chin using heat flux technique
Teppei Kawano,Yuhji Kabasawa,Suga Ashikawa,Yuriko Sato,Shigeharu Jinno,Ken Omura OOOOE Vol.108,No.4 October 2009
Measuring heat flux and amount of heat as indexes of cold pain threshold
Kazuhiro Shimo,Shigeyuki Suzuki,Takahiro Ushida PAIN RESEARCH 27(2012)17-26
Cutaneous Warm and Cool Sensation Thresholds and the Inter-threshold Zone in Malaysian and Japanese Males
Joo-Young Lee,Mohamed Saat,Chinmei Chou,Nobuko Hashiguchi,Titis Wijayanto,Hitoshi Wakabayashi,Yutaka Toshihara Journal of Thermal Biology 2009
A new evaluation method for neurosensory disturbance in the chin of patients undergoing mandibular sagittal split ramus osteotomy:an application of the heat flux technique
Yuhji Kabasawa,Kiyoshi Harada,Shigeharu Jinno,Yuriko Satoh,Yutaka Maruoka,Ken Omura OOOOE Vol.102,No.6 December 2006
Changes in Cold/Warm Thresholds with Advancing Age―The Case of Adult Women Aged from the 20s to the 80s―
Yukiko Uchida,Teruko Tamura,Fusako Iwasaki SEN’I GAKKAISHI(報文) Vol.65,No.5(2009)
Peripheral Warm and Cool Thresholds in Malaysian and Japanese Males
Joo-Young LEE,Mohamed SAAT,Chin-Mei CHOU,Titis WIJAYANTO,Hitoshi WAKABAYASHI,Yutaka TOCHIHARA 日本生理人類学会誌 Vol.14特別号 第60回大会要旨集(北海道 2009年6月)
Age-related differences in cutaneous warm sensation thresholds of human males in thermoneutral and cool environments
Yutaka Tochihara,Teruyuki Kumamoto,Joo-Young Lee,Nobuko Hashiguchi Journal of Thermal Biology36(2011)105–111
cold/warm thresholds,skin temperature and skin blood flow waves in young women with cold constitutions(hie-sho)
Mariko Sato,Teruko Tamura ICB2008,Clothing,Poster



Patent number. 3888749
