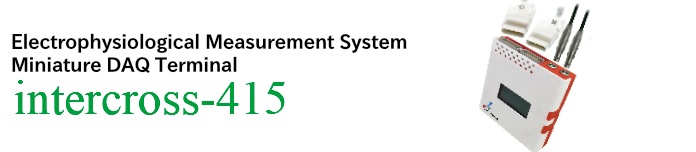

Miniature DAQ Terminal intercross-415

Integrated terminal to measure various electrophysiological data with simple operation.

Small, wearable and accurate device that monitors electrophysiological measurement,

acceleration, respiration, pulse and others, by changing connectors up to 8 channels.

Light weight and high reliability which realizes long time continuous measurement.

8 channels
Built-in Acceleration 3-axis, Gyro, Temperature, Air pressure sensor

Holter and monitor two ways

Interelectrode resistance measurement

4G storage

+Bluetooth +USB

12 hours continuous use

Trigger-in 2ch

DA out 1ch

Simple operation and accurate measurement of 8 channels with a specialized software.

Miniature DAQ Terminal  :   intercross-415
Input channel 8 ch
Measurement items EEG, ECG, EMG, EOG, Acceleration, Respiration, Pulse etc
Input mode Differential input
Amplification 1 to 24 times
Sampling rate 250Hz, 500Hz, 1kHz, 2kHz
Input impedance 1GΩ
Resolution 24bit
Built-in acceleration 3-axis ±16G     8G     4G     2G (Selecting one item)
Built-in Gyro 3-axis ±2000      1000   200    125   dps  (Selecting one item)
Air pressure sensor 30-110 k Pa (±0.6Pa   ±5cm height difference)
Temperature sensor 0-100℃
Trigger-in 2ch  TTL
DA out 1 ch
Communication Bluetooth    USB (micro B)
Storage 4G
LCD display Battery level     Status
Battery Li-ion battery   12 hours of continuous use
Size / Weight 80 mm x 80mm x 20.4mm         90g
Active electrode Mainbody supplies the power via an exclusive cable
Electrode impedance 0-200kΩ
Standard accessory Biopolar 4ch cable (ECG, EMG etc)

Single-pole 4ch cable (EEG)

1 charging cable    1 manual



single-pole 3 channels
bipolar 1 channel
connecting Dry electrode or Gel electrode
bipolar 4 channels


Respiration / Pulse
bipolar 1 channel

 Acceleration 3-axis
bipolar 1 channel
Dry electrode Gel electrode
