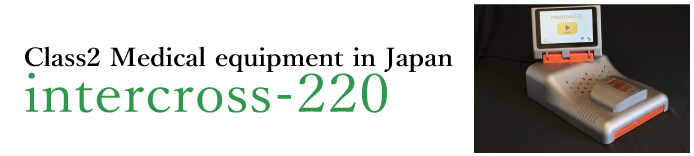

intercross-220
Evaluate the Thermoception
●3 functions. QST / TGI / Offset
●3 stimulation plates. The temperature can be controlled all together or separately.
●Equips 2 sensors. Heat flux and Temperature
■QST/ Quantitative Sensory Testing■
Evaluate the thermoception.
The temperature of all 3 stimulation plates increases or decreases at the same time.
2 choices of preset temperature : specified temperature or skin temperature.
■CPM / Conditioned Pain Modulation■
Hypoesthesia led by other pain stimuli.
■TGI / Thermal Grill Illusion■
Verification of illusion appearance using simultaneous warm and cold stimulation.
The temperature increase / decrease of the central plate can be controlled separately.
■Offset ■
■intercross-220
| Stimulation plate size | 69mm×38mm (3 plates)
23mm×38mm per each |
| Range for temperature control |
0℃～50℃ |
| Thermoregulation speed for probe |
0.1 ℃/sec ~3℃/sec |
| Output | Wifi |
| Power supply | AC100V |
| Size | 250mm×350mm×240mm |
| Weight | 4kg |
■ Standard accessory
| Event switch | 1 pc | |
