Real-time electrophysiological measurements and analysis software

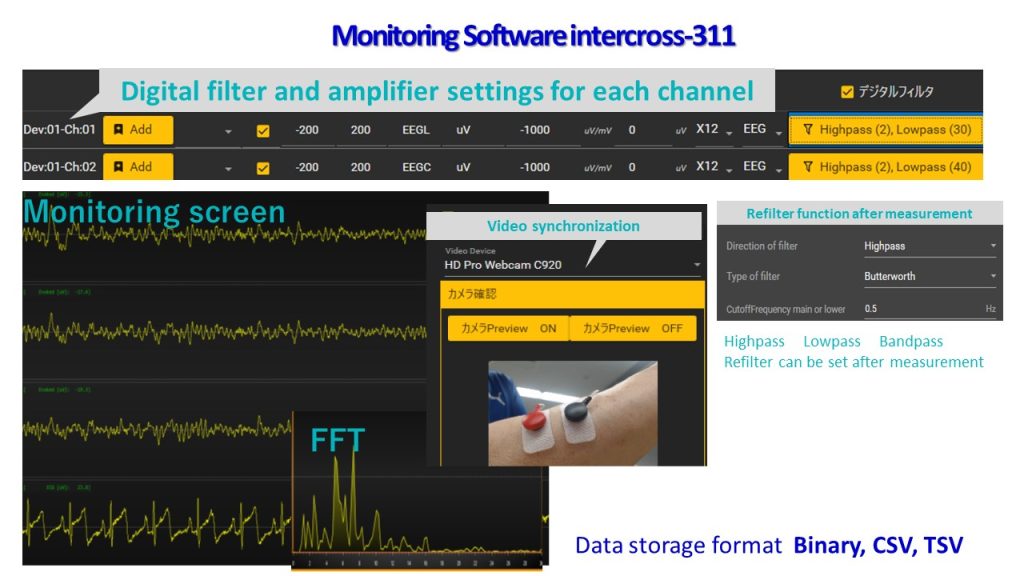

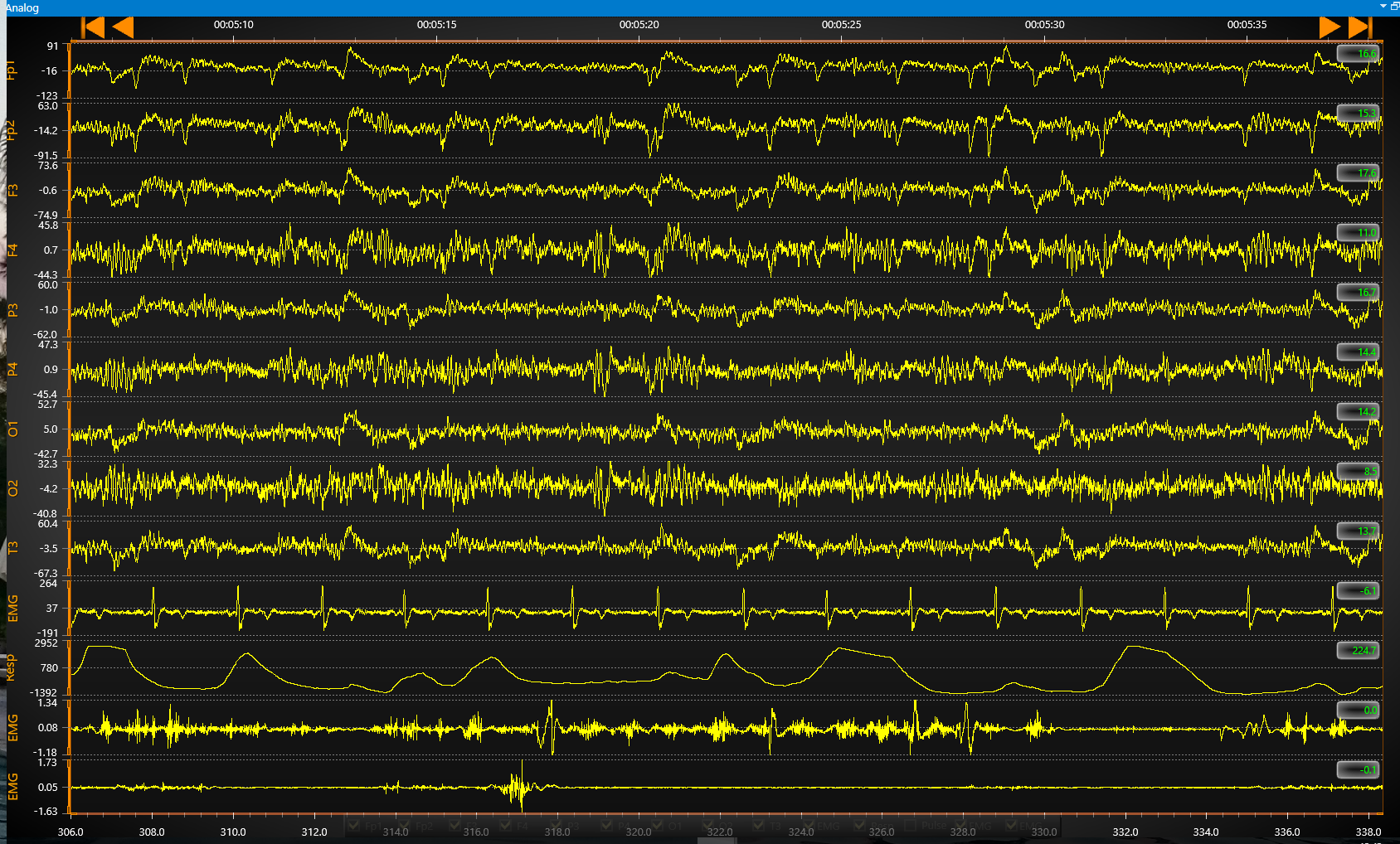

DAQ master software monitors and analyzes the waveform by communication with intercross-413/415 via Bluetooth in real-time and

it can be performed measurement items setting, waveform drawing and simple calculation.

Each channels setting of measurement items.

Interelectrode resistance measurement.

The synchronization of measurement and external USB camera.

Filter setting.

Analyze of arbitrary channel such as FFT.

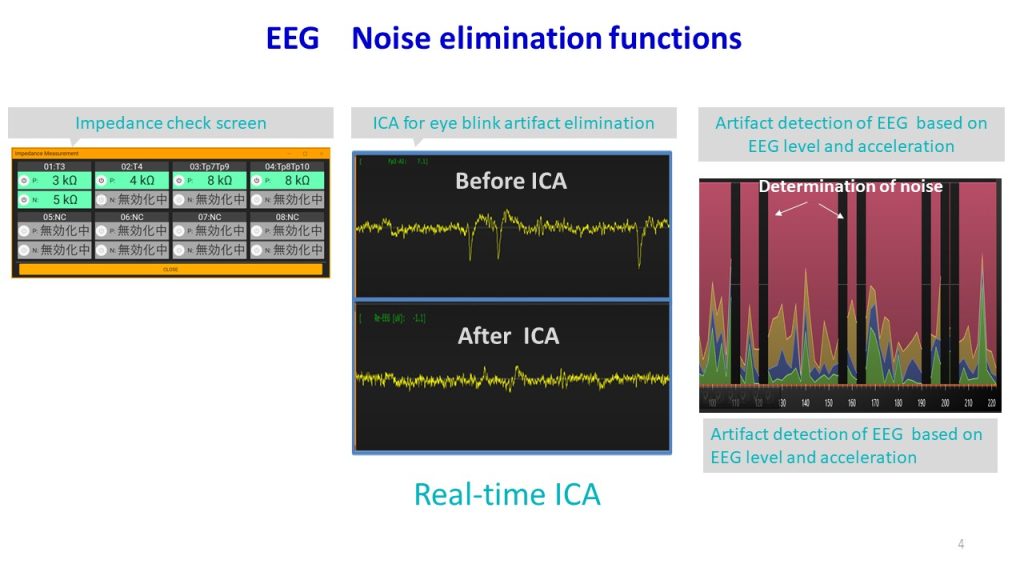

ICA function, isolated EOG wave from EEG wave.

DAQ real-time analysis

intercross-311-300

DAQ Master performs the following analysis in option.

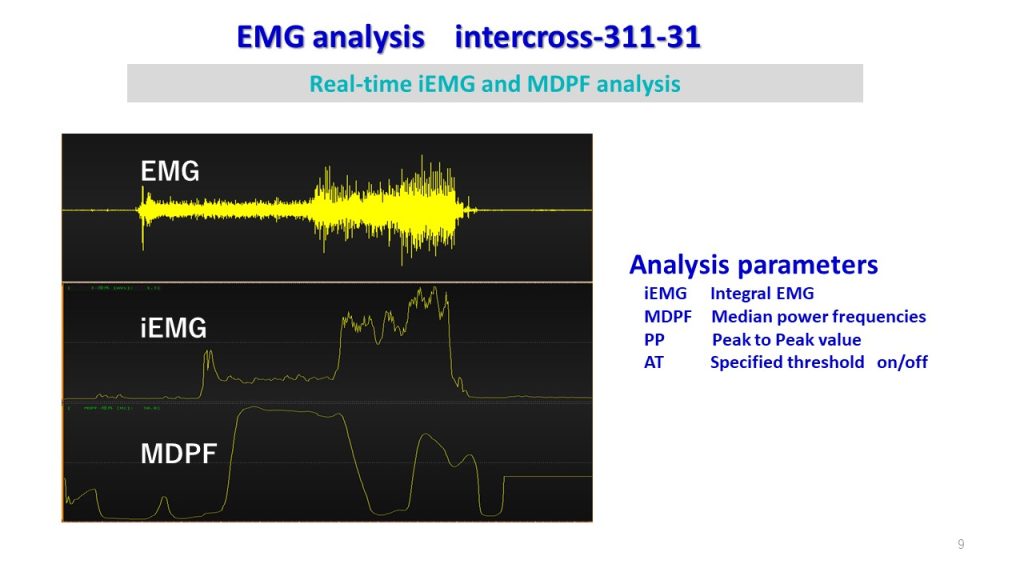

EMG   iEMG　MDPF　PPEMG

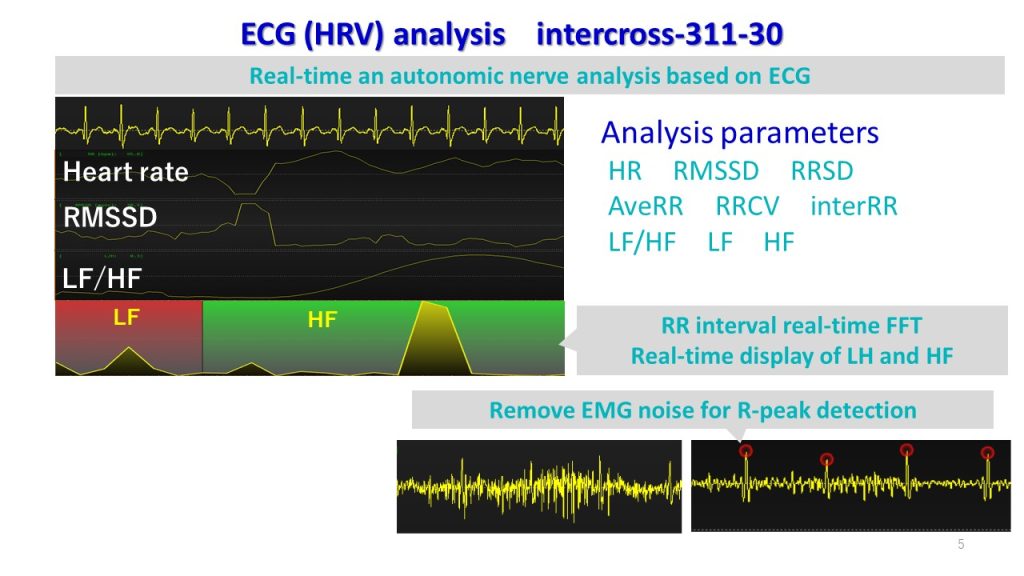

ECG　　　HRV　　Hart rate LF/HF RMSSD

Displayed detected R wave from electrocardiogram waveform and HR graph , and real time drawing of autonomic nerves index LF, HF,  L/H,  RMSSD

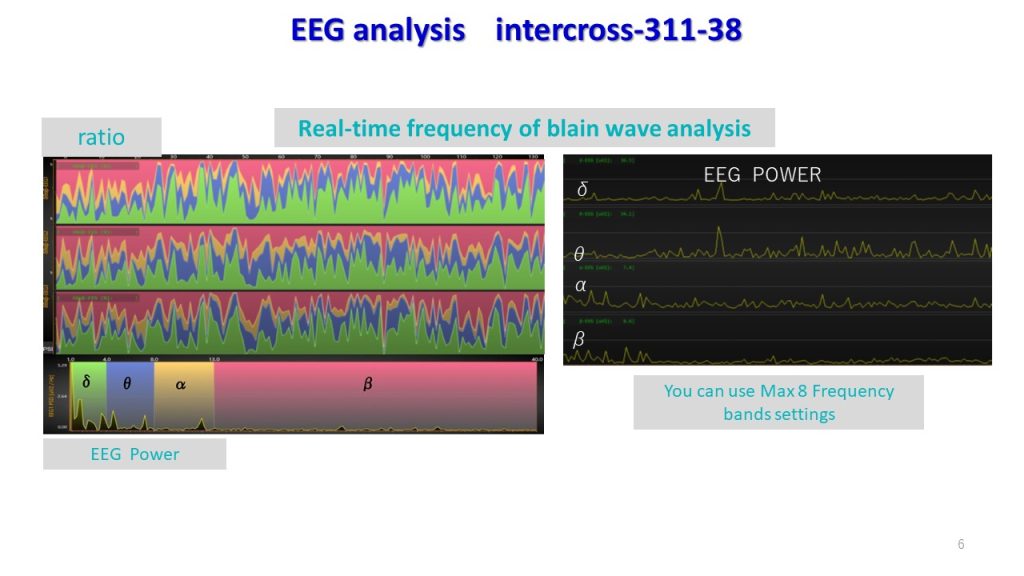

EEG       ratio of each component of δ θ α β　　　

Analyze of frequency of the brain waveform and display calculated the ratio of each component of δ・θ・α・β in real time.

Other Software

●DAQ-ERP    Event Related Potential

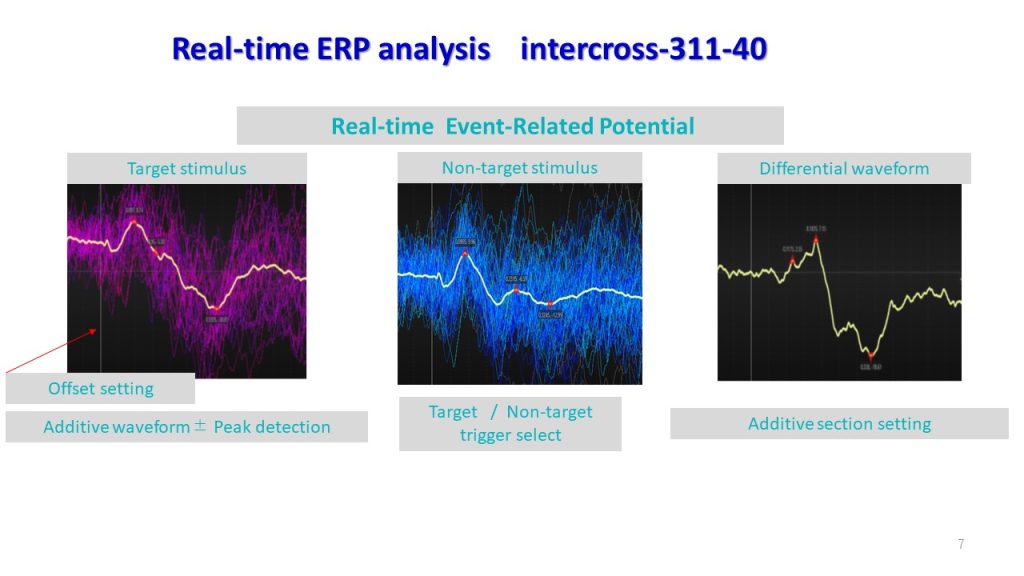

ERP analysis in real-time, ex. P300 , SEP analysis

P300

SEP



●DAQ-NF    Neurofeedback



●DAQ-MF    EMG feedback



●DAQ-FT   Feeling test

analysis of digital questionnaire with physiological data
