Micro DAQ Terminal intercross-413

Integrated terminal to measure various electrophysiological data with simple operation.

Ultra small, wearable and accurate device that monitors electrophysiological measurement,

acceleration, respiration, pulse and others by changing connectors up to 4 channels.



Ultra light weight and high reliability which realizes long time measurement.

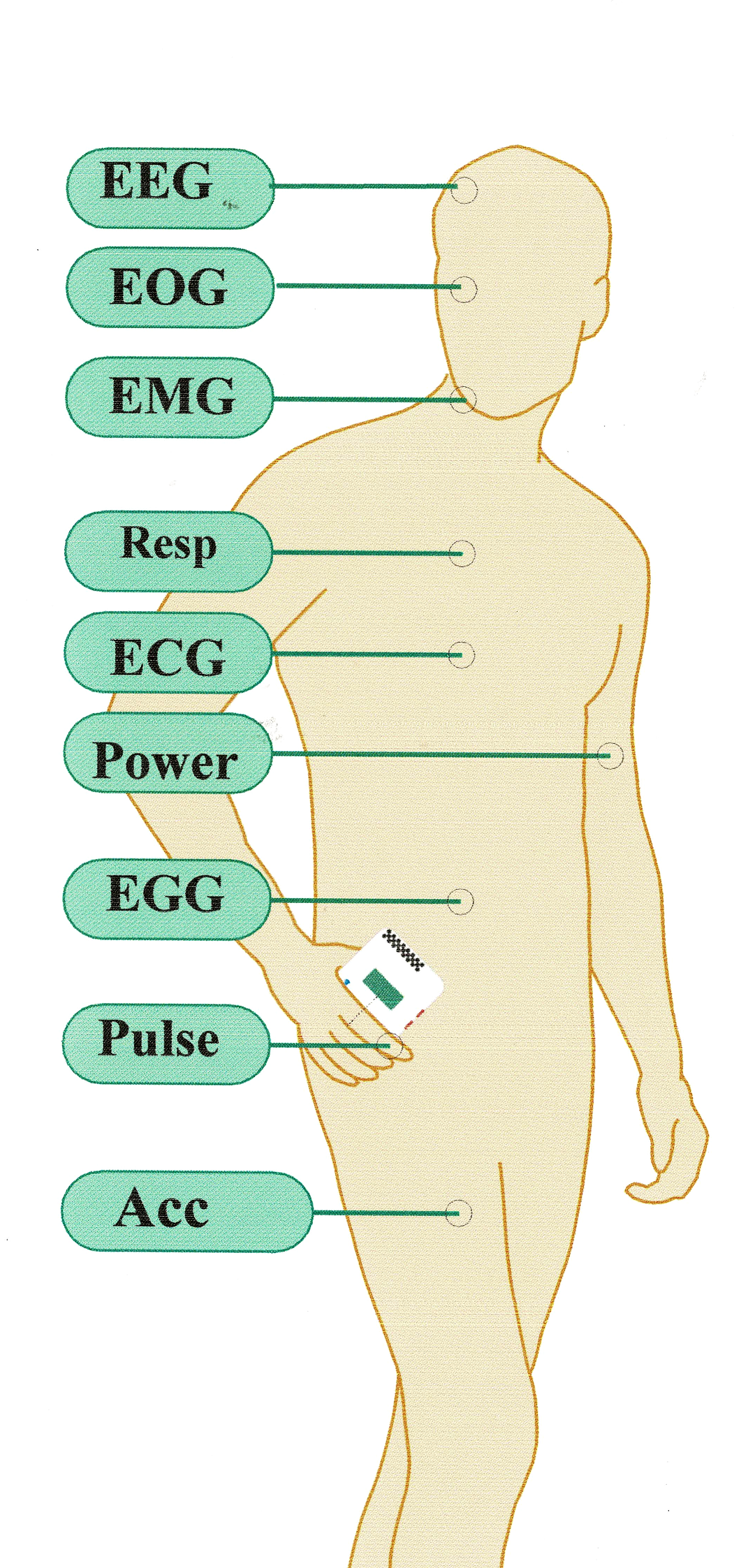

A wide range of connector for various measurement:
EEG, EMG, EOG, Respiration, EKG, Force, Pulse, Acceleration.

Light weight
Long battery life
8 hours continuous use



simple operation and accurate measurement of 4 channels

with a specialized software.

The main body contains a biological amplifier, CPU and battery.
Connects via Bluetooth (class 2)





Micro DAQ Terminal  :   intercross-413
Input channel 4 Analog channels
Measurement items EEG,ECG,EMG,Acceleration, Respiration, Pulse
Input mode Differential input
Amplification 1 to 12 times
Sampling rate 250Hz   500Hz   1kHz   2kHz
Input impedance 1GΩ
Resolution 24 bit
Communication Bluetooth
Trigger-in 1 channel  TTL
Battery Lithium-ion battery (8 hours of continuous use)
Size / Weight 64㎜×37㎜×16㎜      38g
Active electrode Mainbody supplies the power via an exclusive cable
Standard accessory  1 charging cable      1 Manual

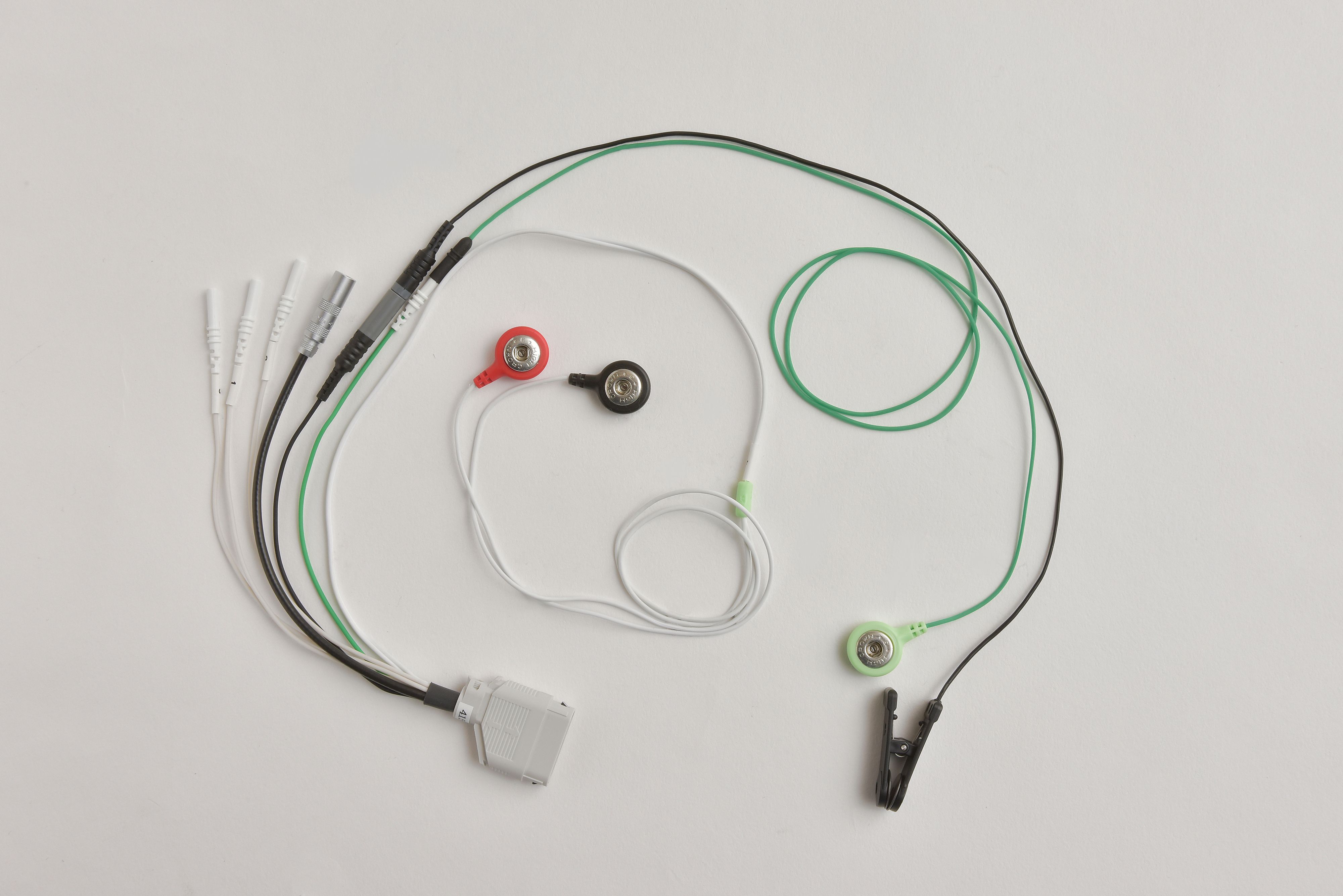

single-pole 3 channels                                      bipolar 1 channel
connecting Dry electrode or Gel electrode

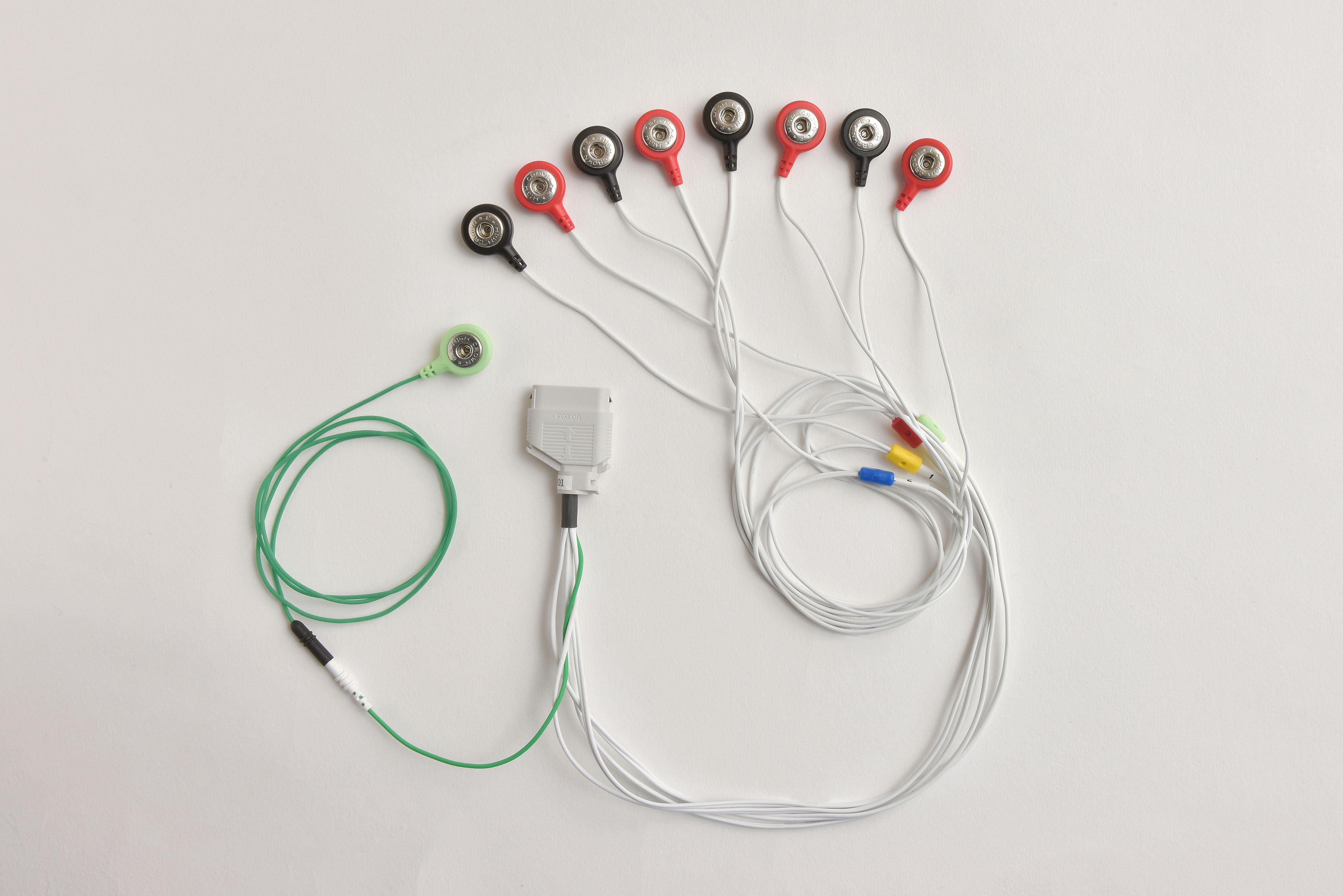

bipolar 4 channels

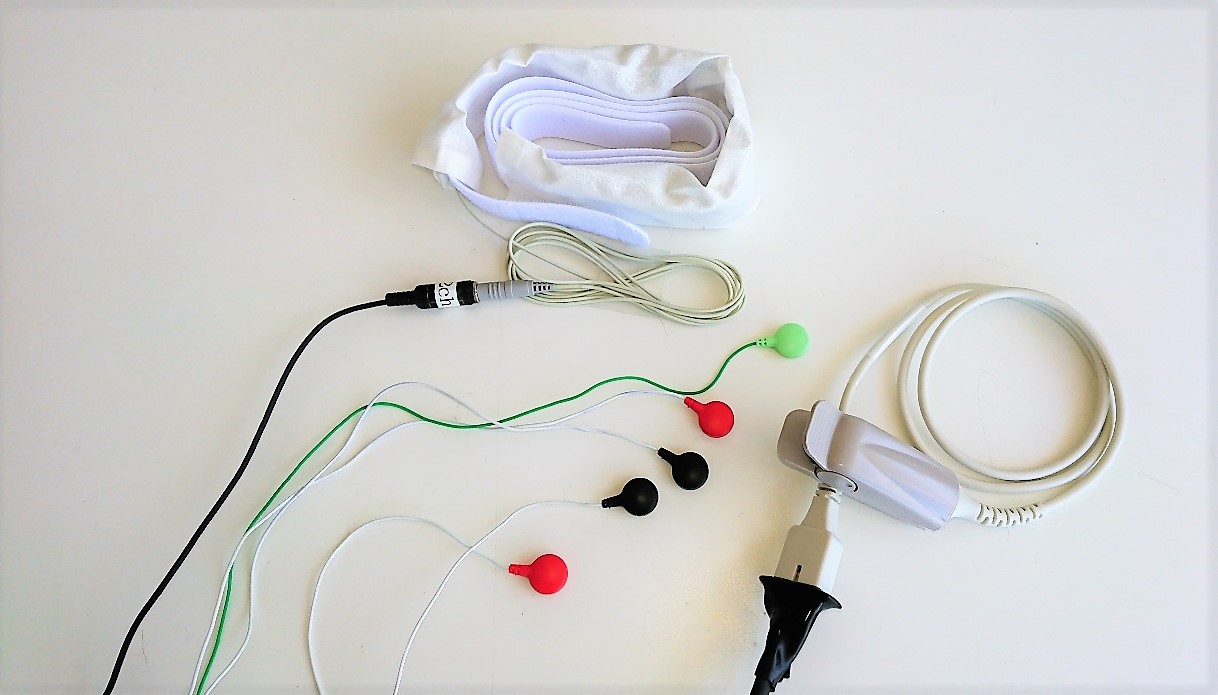

Respiration / Pulse

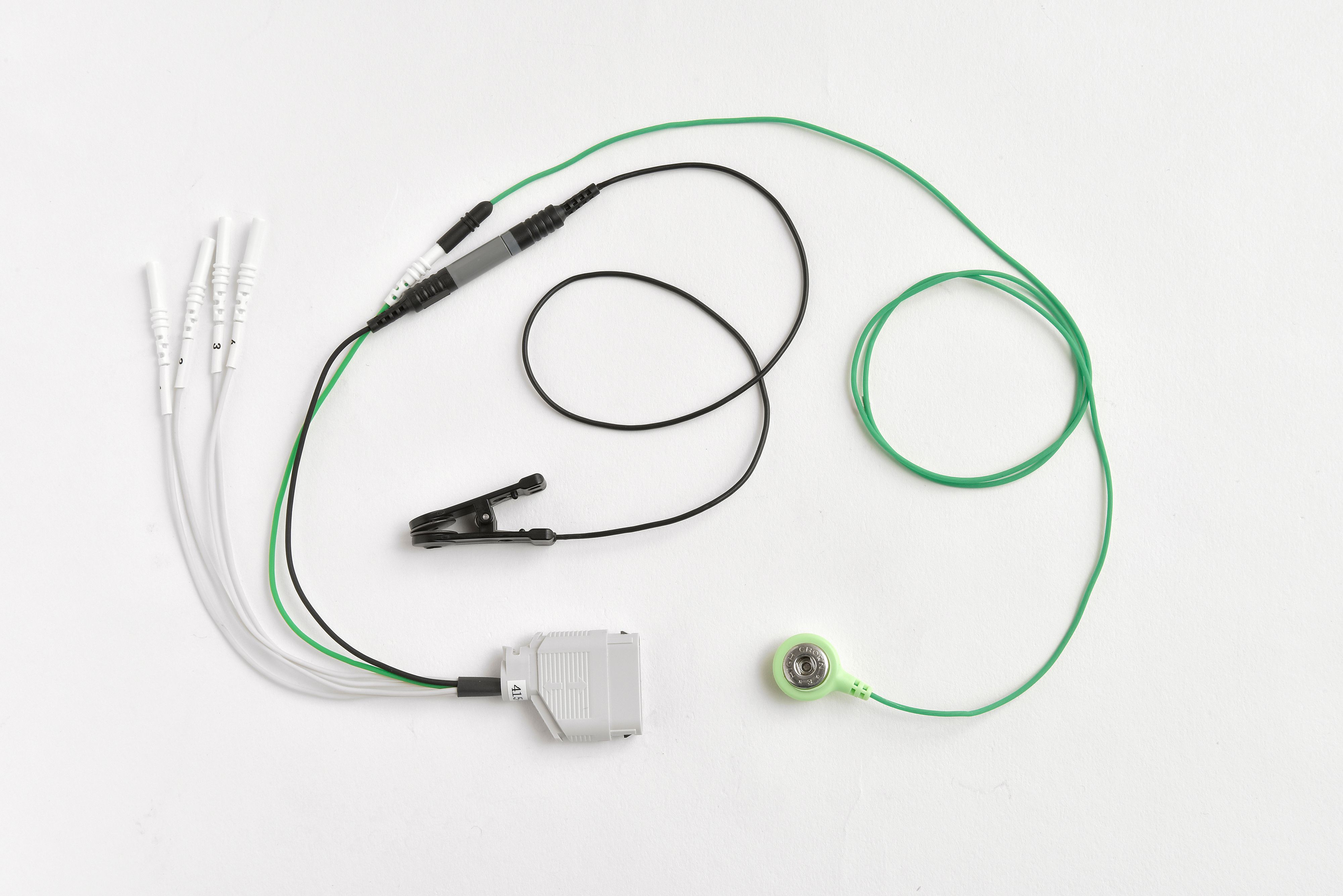

bipolar 2 channels

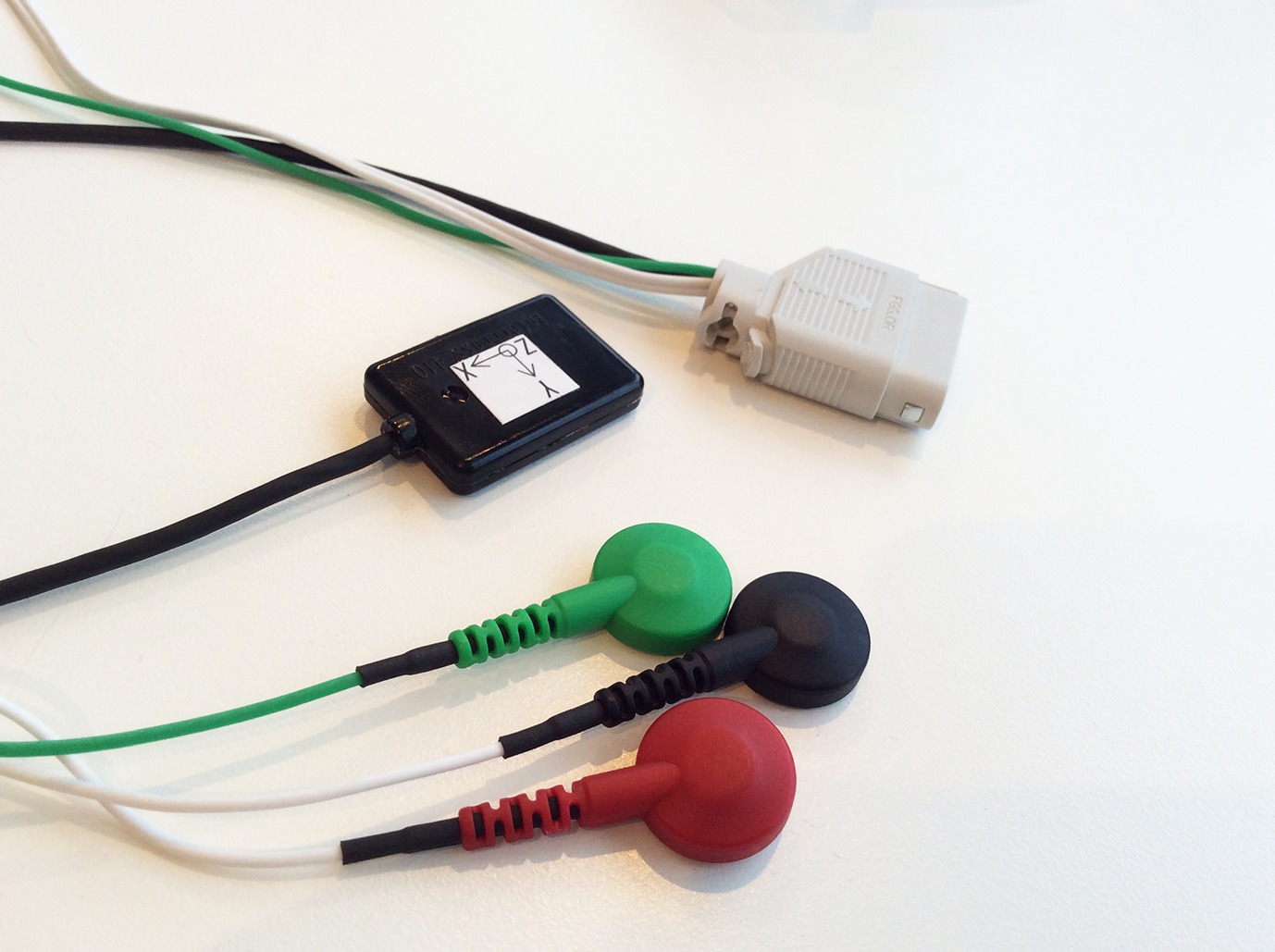

 Acceleration 3-axis

bipolar 1 channel

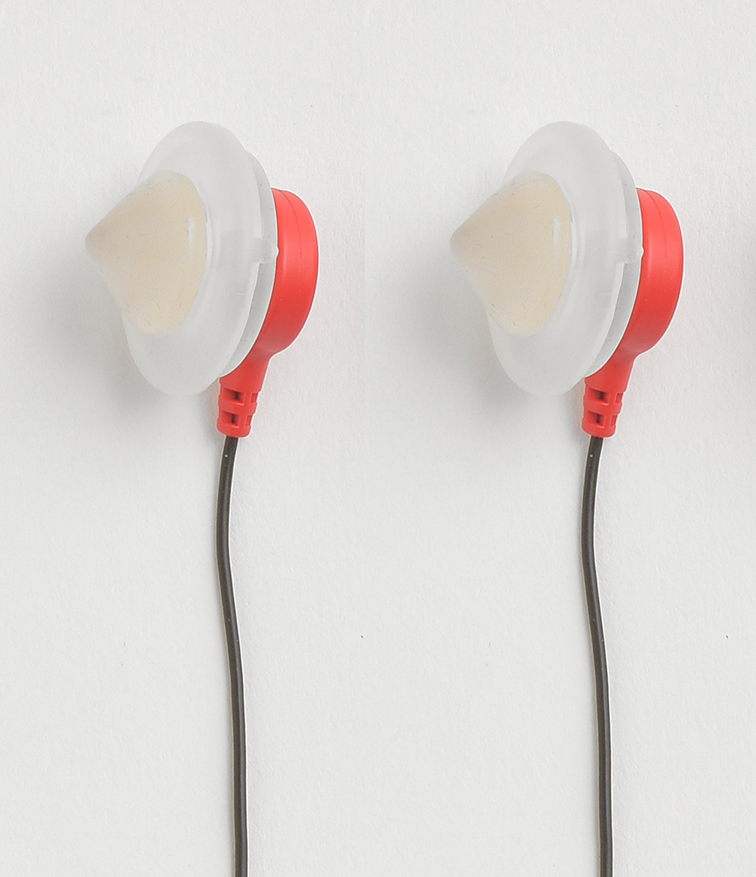

Dry electrode      Gel electrode
